By Loehl O’Brien, SE Project Executive, Clark Pacific.
Constructing a semiconductor fab is unlike any other building project. These facilities operate continuously, require microscopic environmental tolerances, and must transition rapidly from construction to cleanroom qualification. The biggest bottleneck to U.S. semiconductor reshoring isn’t process technology — it’s construction. A shortage of specialized trades familiar with ultra-pure process systems, globally sourced equipment with long lead times, and the financial consequences of schedule delays (measured in unrealized chip output, not just construction cost) make conventional building methods poorly suited to advanced fab projects.

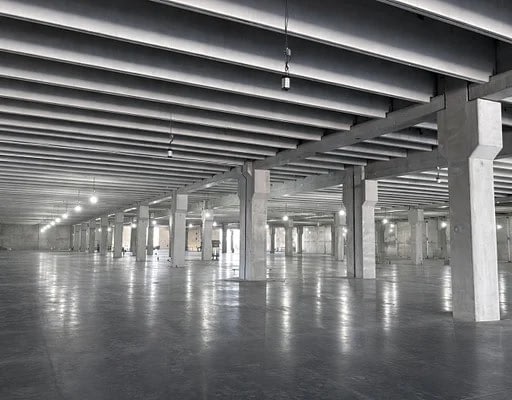

Prefabrication, through Off-Site Manufacturing (OSM) of structural systems and subsystems, addresses these challenges by shifting production from sequential field work to planned parallel assembly. Factory-fabricated wall panels, enclosure systems, and structural assemblies can be installed in predictable sequences, supporting precise equipment installation and overhead service coordination. OSM removes high-disturbance activities from the project site, enabling earlier cleanroom commissioning. Compressed overall schedules result without increasing on-site congestion — a critical advantage when delays translate directly to lost chip production capacity.
This approach requires a methodology called Design for Manufacturing, Logistics and Assembly (DfMLA): early collaboration among owners, designers, builders, and manufacturers. Digital tools like Building Information Modeling (BIM) and clash detection resolve structural conflicts before fabrication begins, and just-in-time delivery coordinates component arrival with site readiness. Standardized interfaces support scalable expansion across multi-building campuses. The outcome is a construction approach aligned with manufacturing principles — achieving faster timelines and improved environmental stability while building operational readiness in from the ground up.
