Architectural Precast
True Owner Value

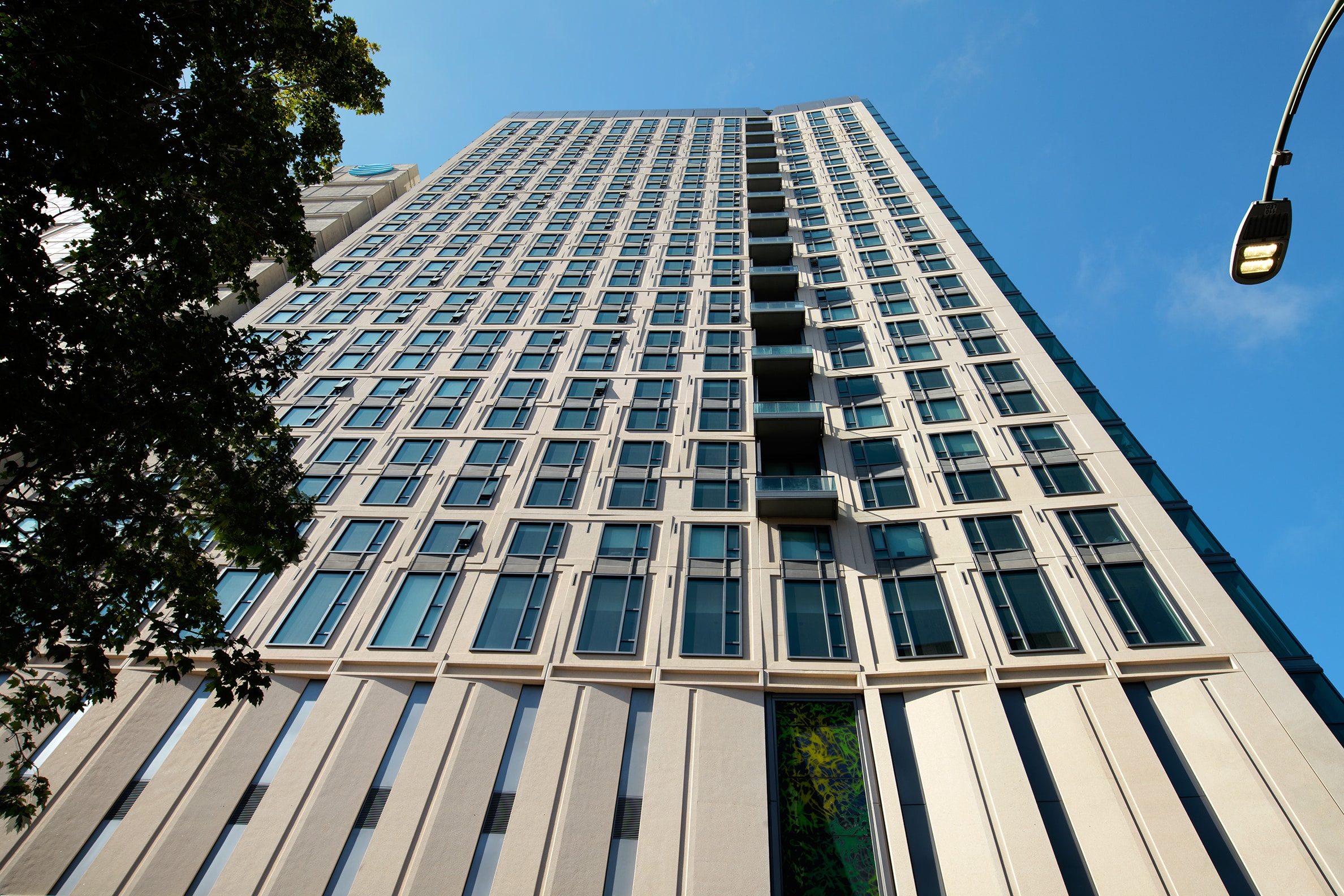

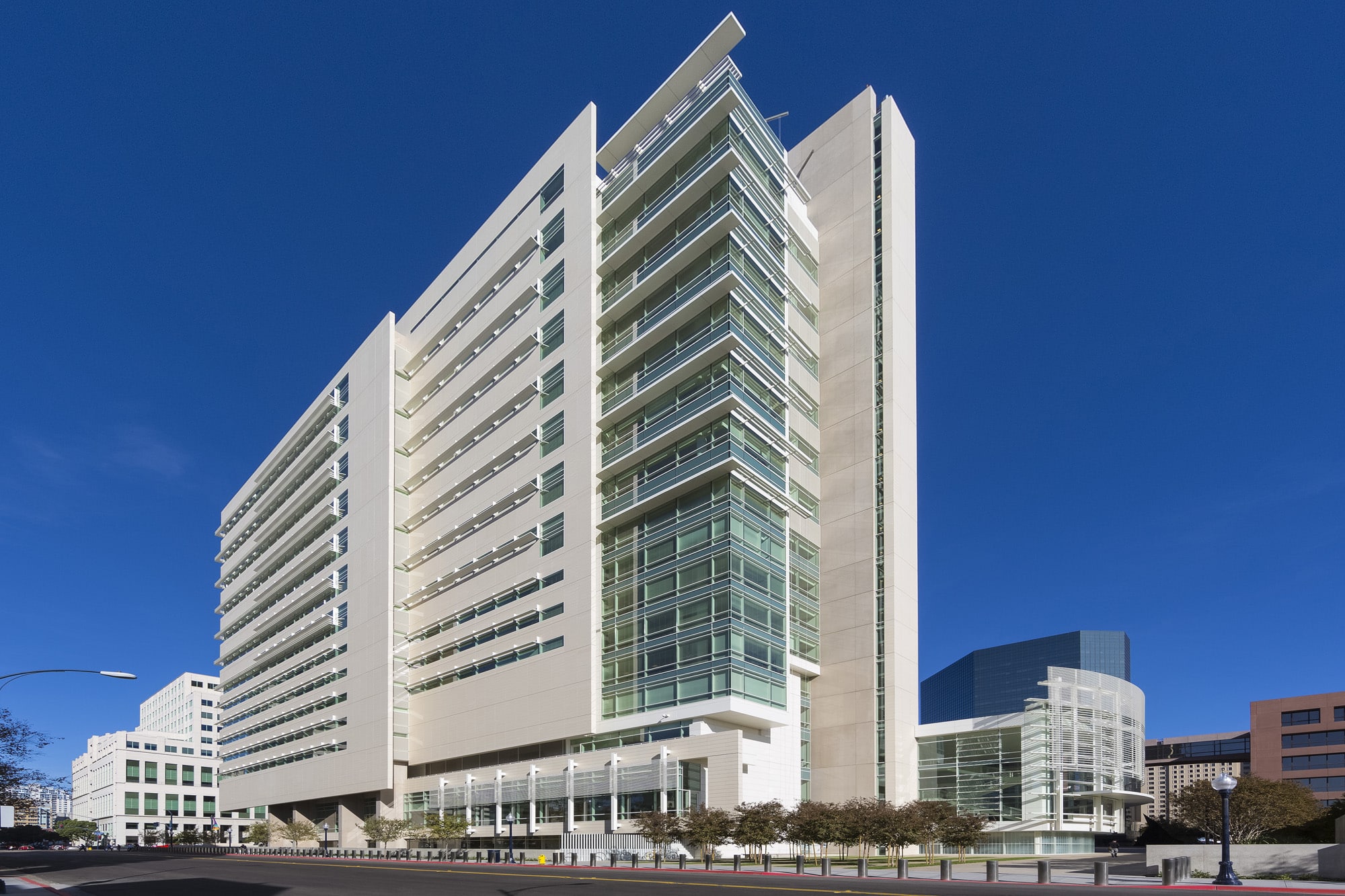

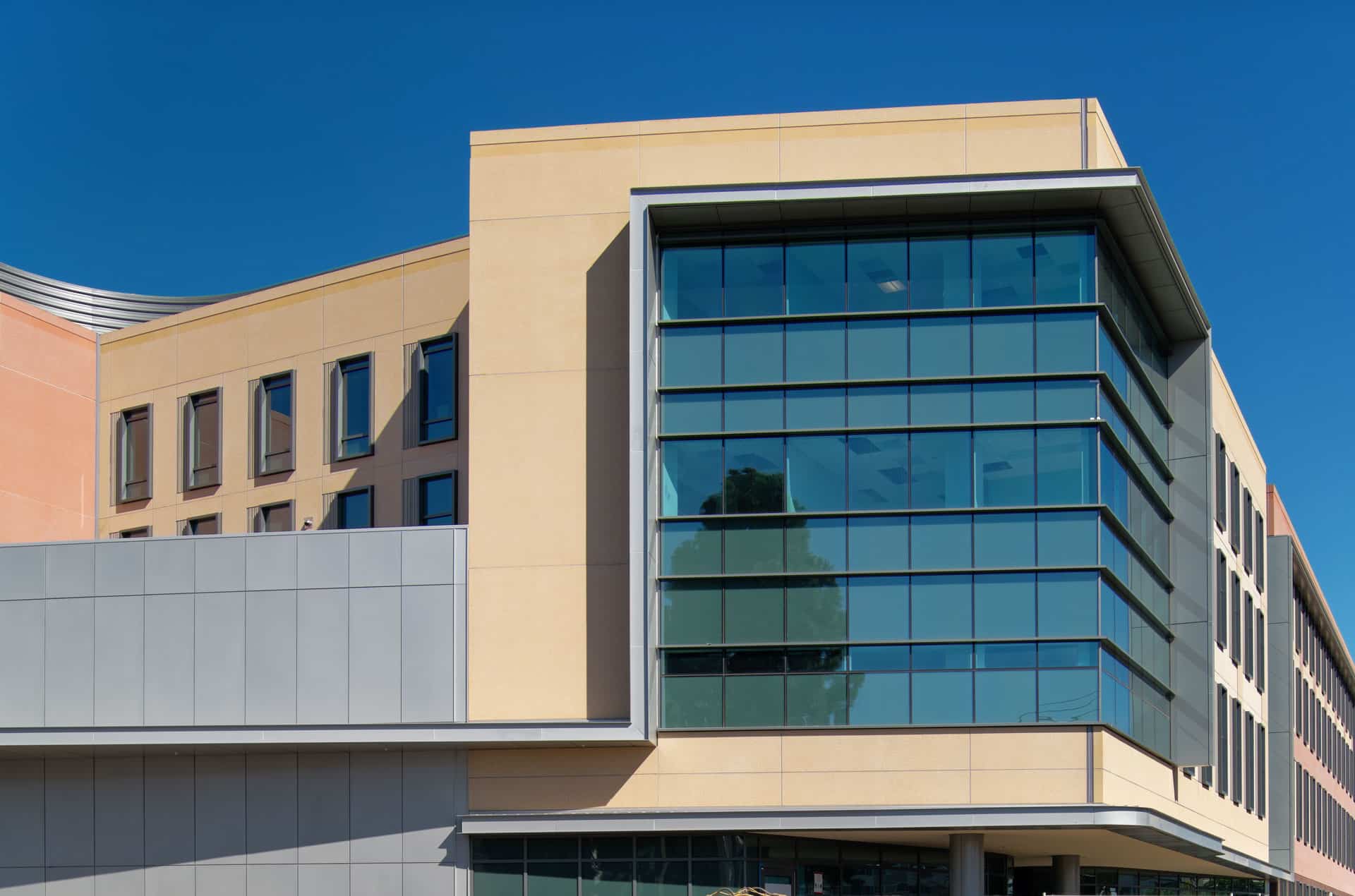

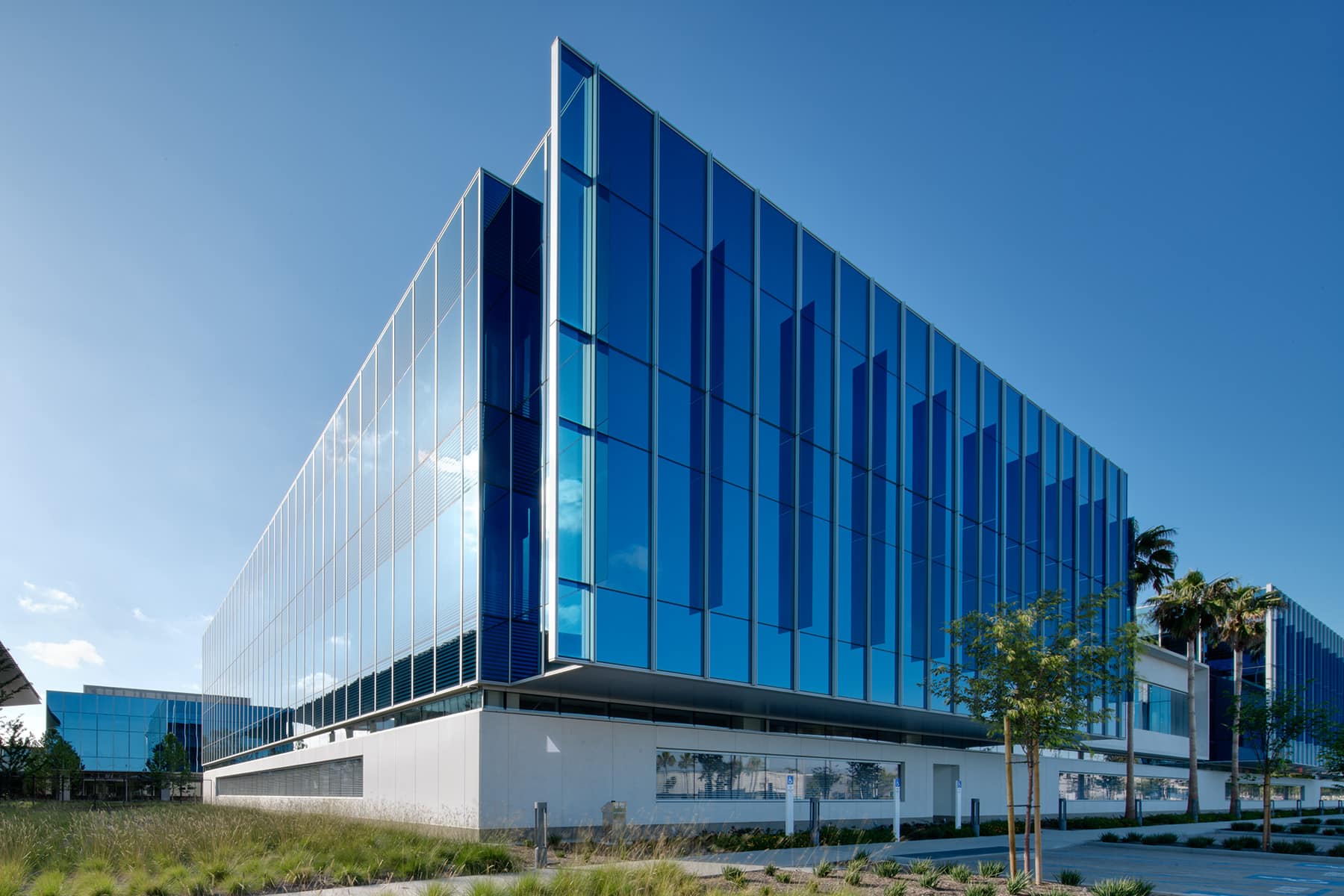

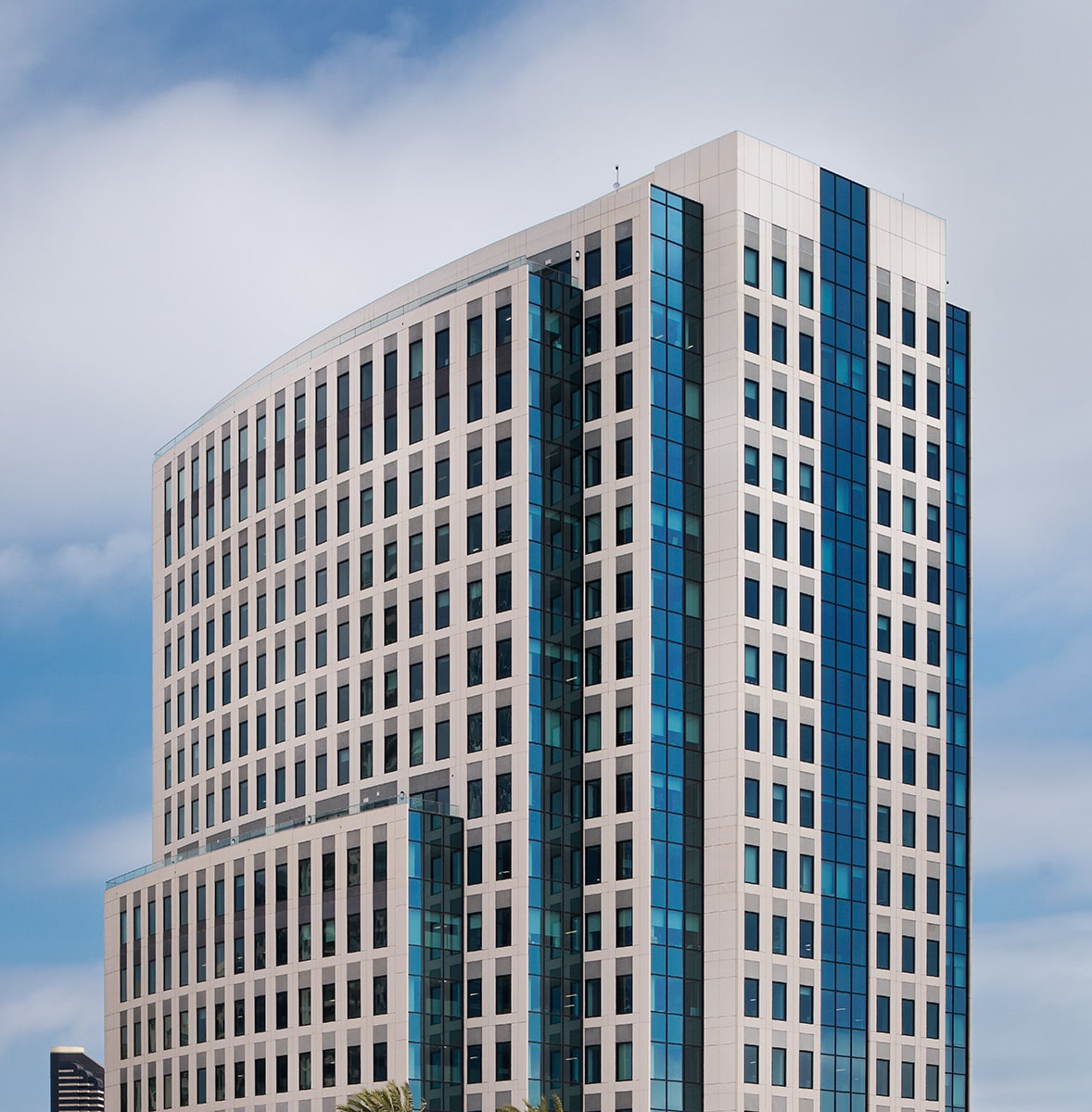

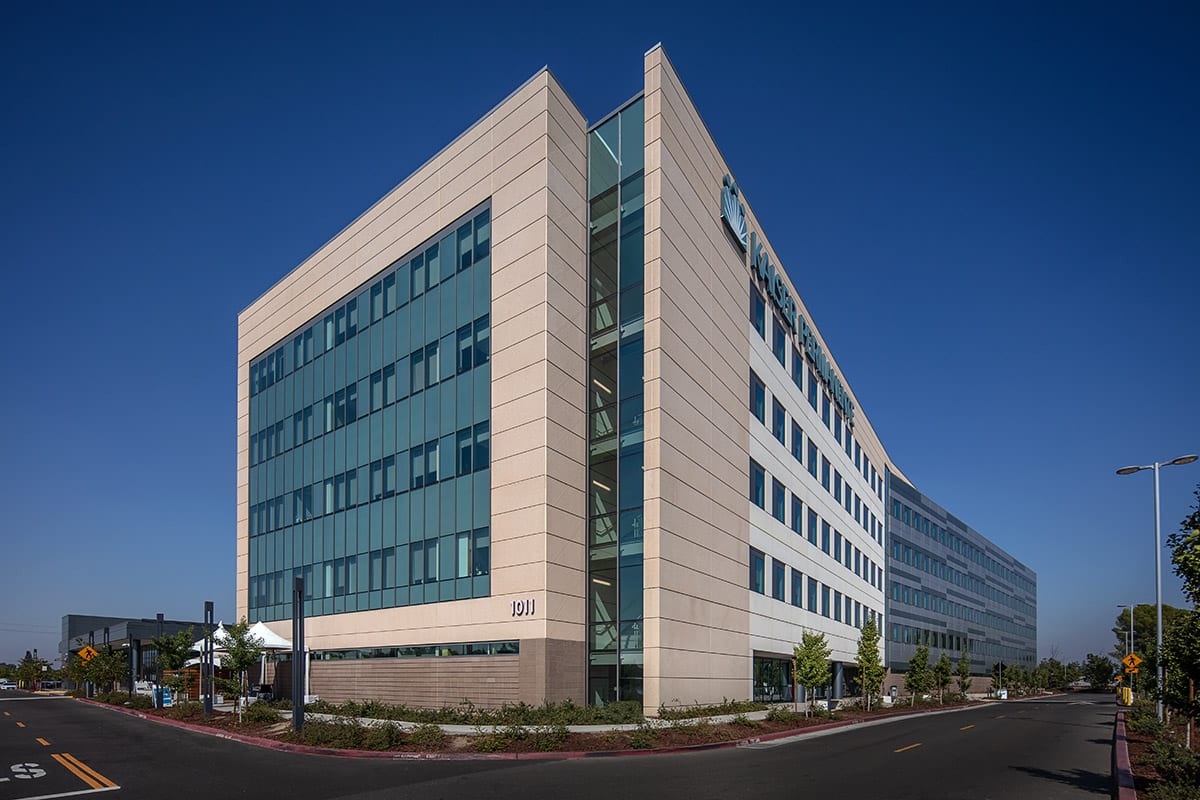

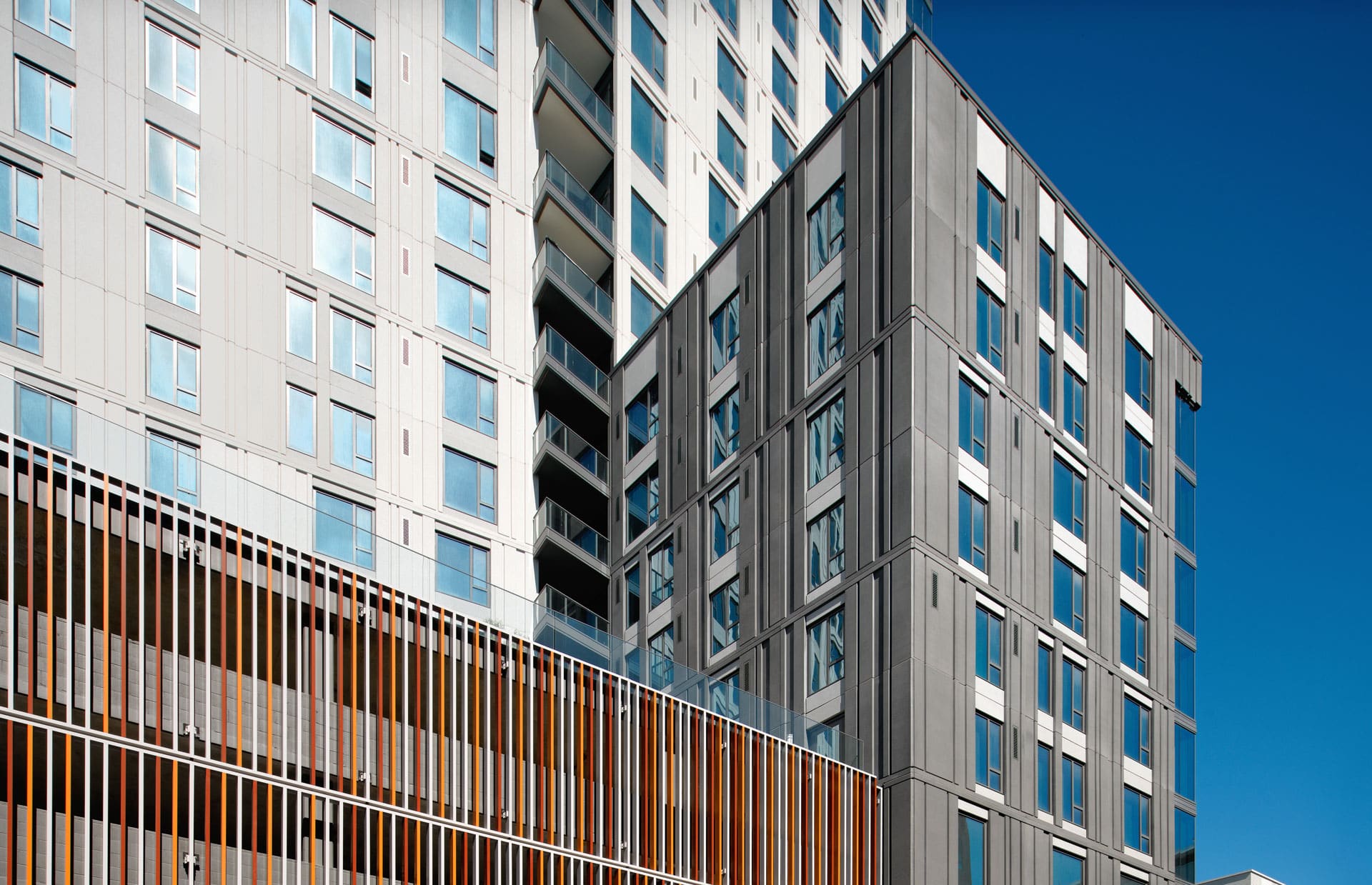

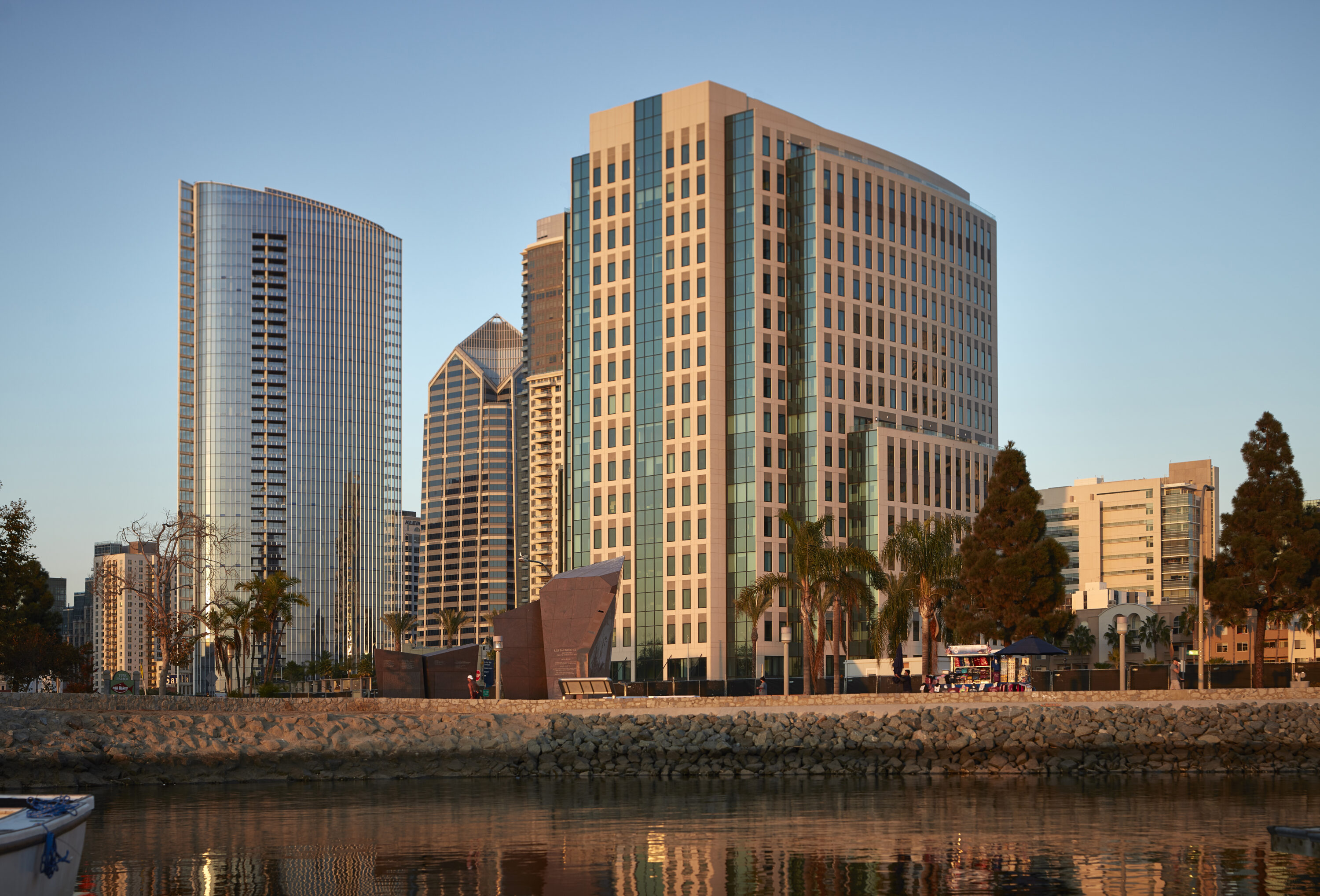

Architectural Precast Solutions combine high durability, low maintenance, excellent fire resistance, and energy efficiency. This powerful combination makes architectural precast concrete an ideal solution for high-rise offices and residential towers, emphasizing prestige, luxury, and aesthetic appeal, or lower-rise offices and commercial structures, where economy and durability are paramount.
- Supports embedded materials
- Ideal for projects subject to blast and ballistics performance
- CEC Energy Efficiency Category: Light Mass

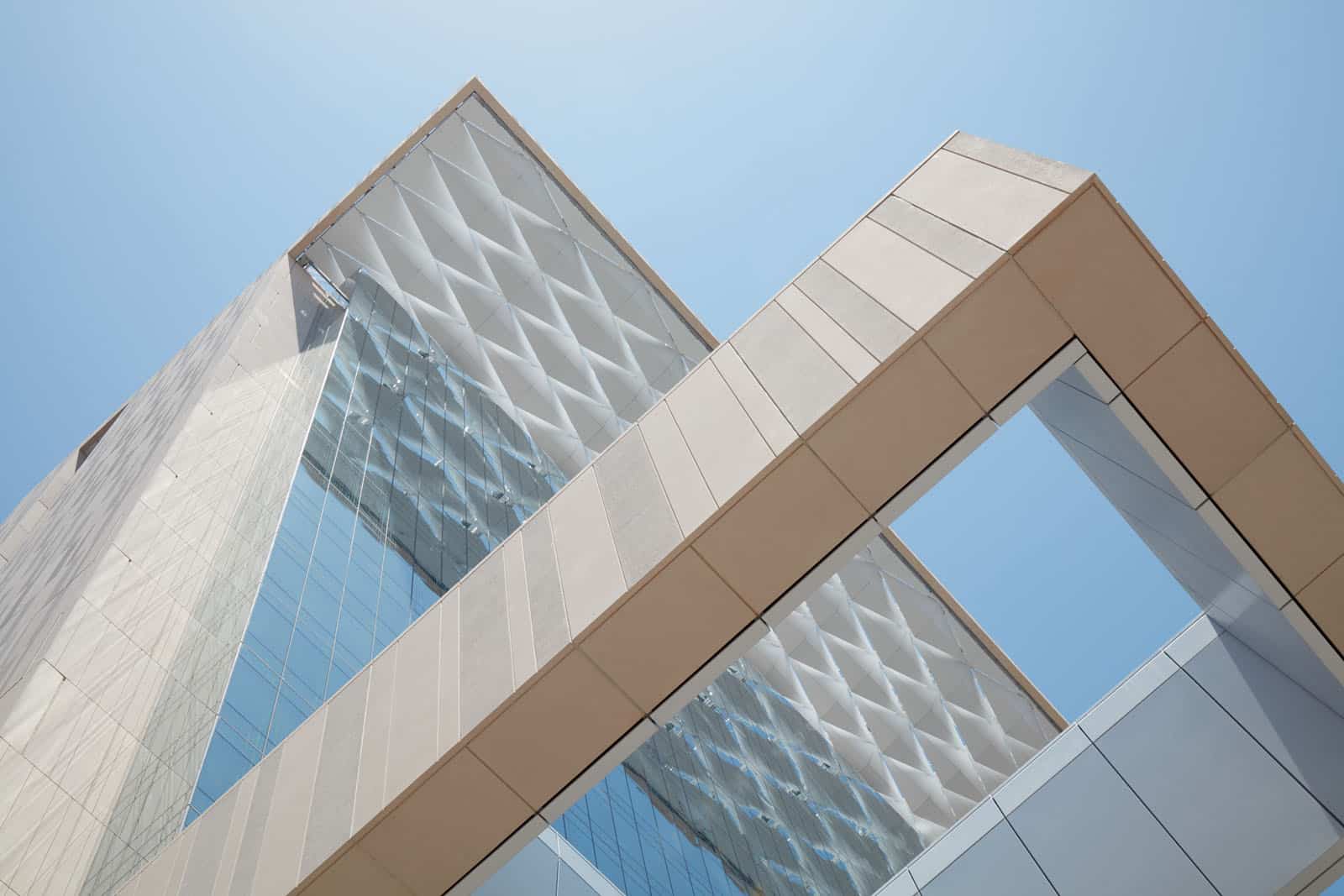

Architectural precast concrete has quietly revolutionized the built environment, from city centers to industrial parks, creating a dramatic range of architectural expression across the West Coast and the nation.
Architectural Precast Benefits
Assembly
- Concrete + optional spray foam
- Concrete thickness: 5″ baseline with 3/4″ reveals
- Baseline opaque system weight: 65psf
- WWR 30/70 ~ 49psf

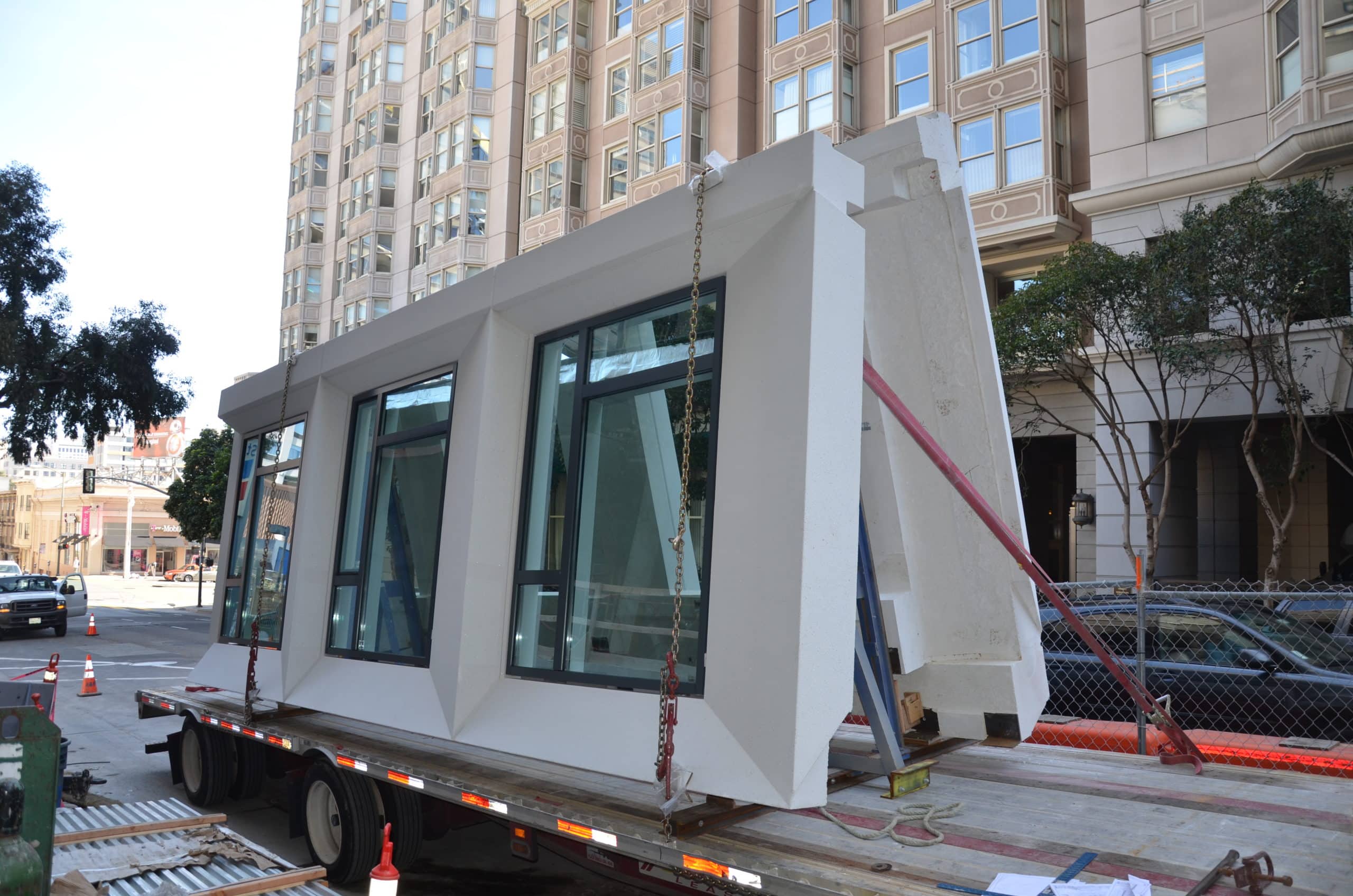

- Panel size: 10’x30′ typical, 15’x35′ max
- Returns: up to 2′-6″
- CEC Energy Efficiency Category: Light Mass
Aesthetic Versatility

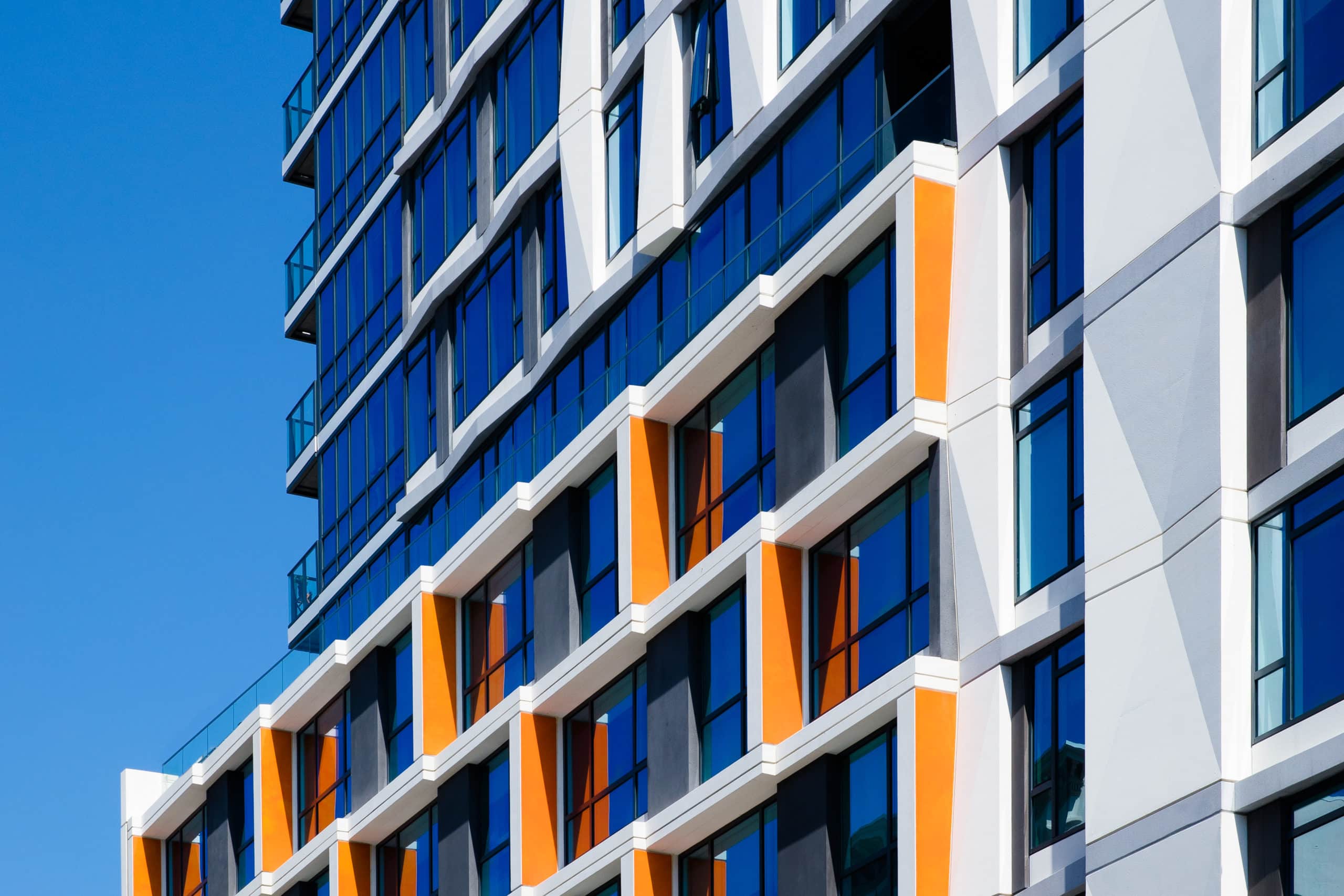

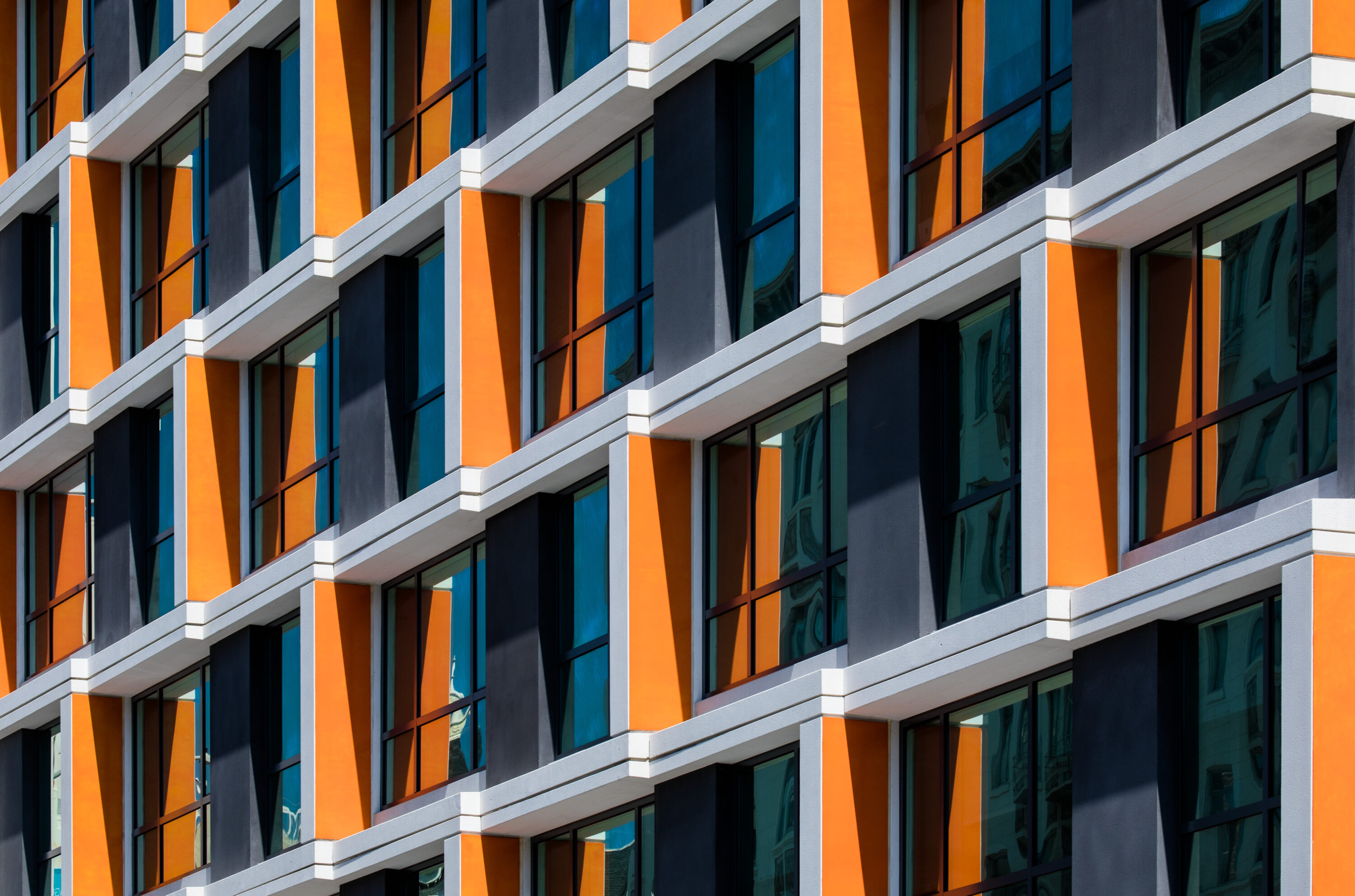

The clearest advantage of architectural precast is found in the virtually limitless design potential that can be achieved with its use.
Custom-made forms are used to create concrete panels in the precise dimensions and shapes specified by the designer. These forms introduce reveals, joints, patterns, and other expressive detailing to the panel surface.

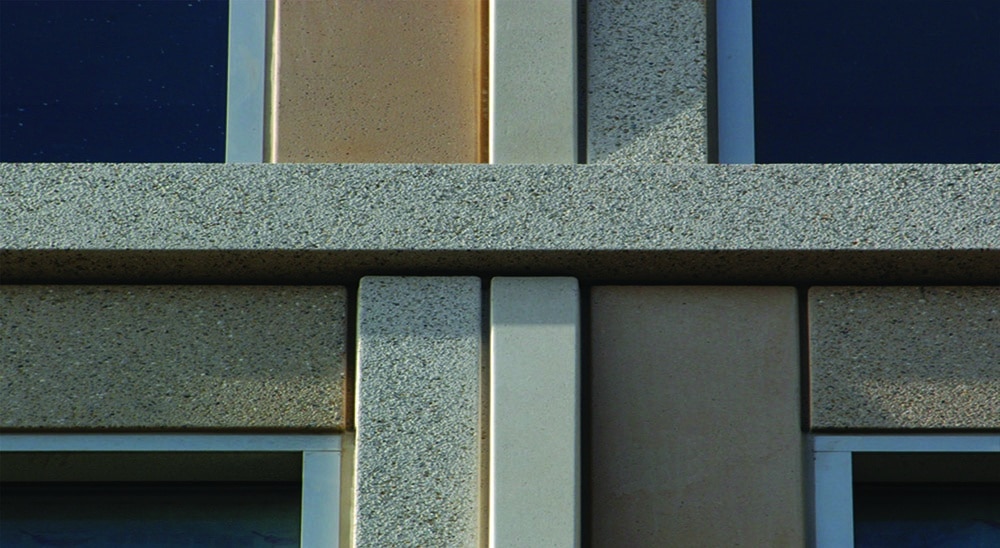

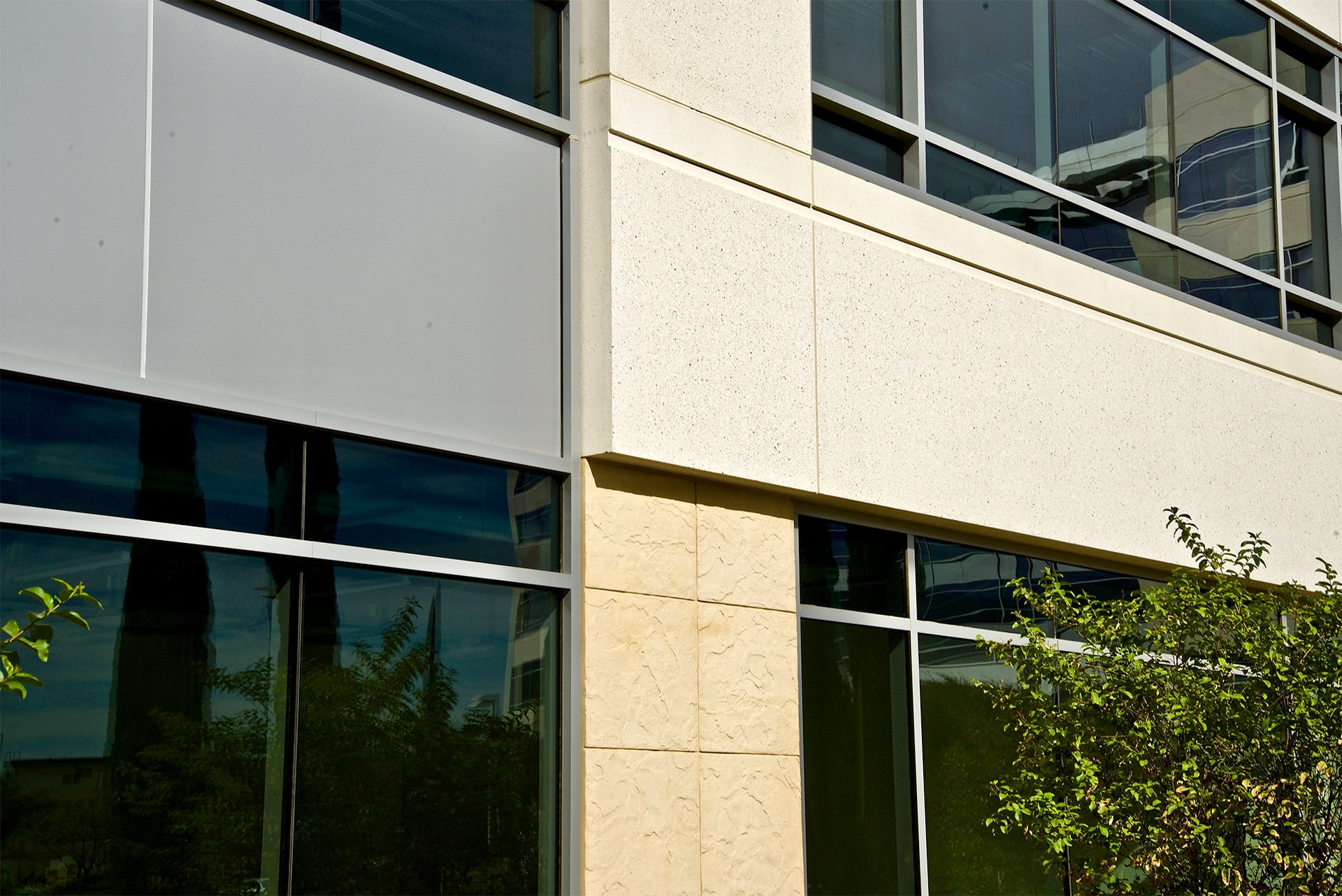

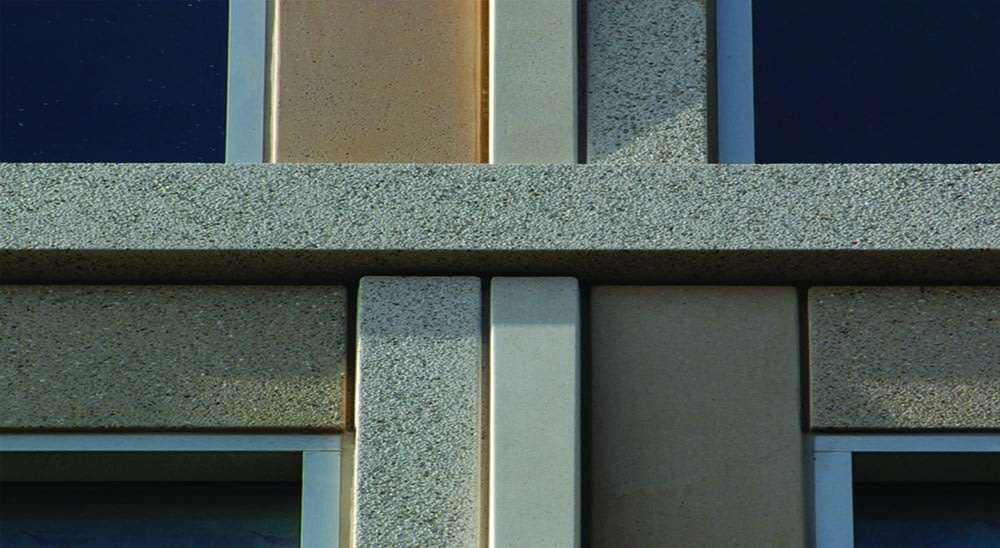

Specific color effects can be achieved through varying sands, aggregates, and pigments and textures can be customized through the use of differing levels of sandblasting treatments. Additionally, stone, tile, or brick veneers can be attached, cast into, or even replicated in architectural precast panels at the plant, allowing designers to achieve dramatic aesthetic visual effects at minimal additional cost.
